Automatic feeders
for pig rearing and finishing
Big Dutchman offers dry feeders as well as wet feeders. Both are ideally suited for use in piglet rearing and/or pig finishing. All feeders can dispense pellets, crumbles or meal. Feed can be supplied either manually or by any type of dry feeding system.
The feeders can stand in the pen or be installed into the pen partition. All versions are easy to handle.

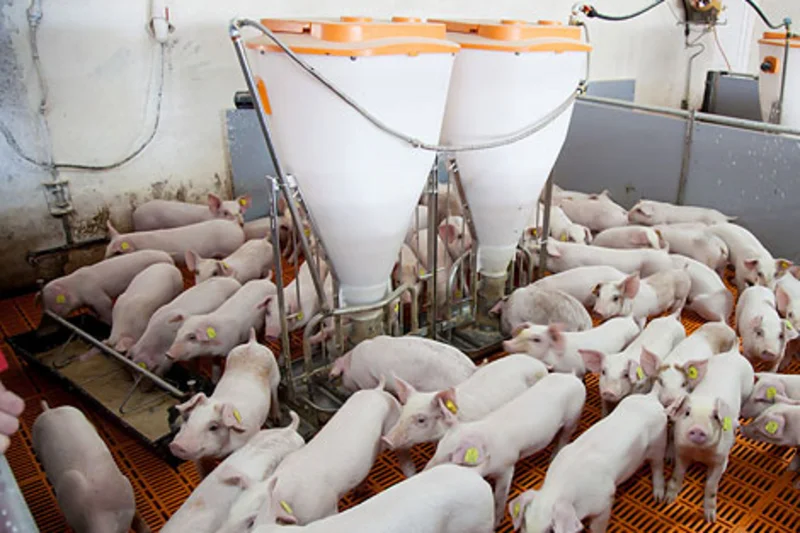

PigNic & PigNic-Jumbo
- for up to 40 or 70 - 80 weaners from 8 kg *
- for up to 40 or 70 - 80 finishing pigs *
Main advantages
- easy adjustment of the amount of feed to be dispensed;
- a 360° pivoted dosing mechanism ensures that the feed flows freely and can easily be operated by the pigs;
- a separate pipe for water circulation prevents deposits of vitamins or medication in the drinker pipe;
- a feed-saving collar keeps pigs from wasting feed;
- a small opening in the trough ensures that excess water can run off;
- the deep stainless steel trough is arranged at some distance above the ground to facilitate thorough cleaning underneath the trough;
- equipped with 2 or 3 drinking nipples;
- transparent 100 L or 200 L hopper;
- folding lid for quick monitoring;
- an agitator inside the hopper (optional) prevents feed bridging.
* Please note: country-specific standards have to be observed!
References
MultiMax
for pig rearing and finishing
For weaners from 6 to 30 kg
- with 2 to 6 feeding places arranged on one or on both sides (2 to 12 feeding places in total).
For finishing
- with 2 to 5 feeding places arranged on one or on both sides (2 to 10 feeding places in total).
Main advantages
- ad libitum dry feeder;
- the amount of feed to be dispensed can be adjusted easily;
- the special trough shape ensures ideal hygienic conditions and reduces feed wastage;
- made of stainless steel and plastic or entirely of stainless steel.
![[Translate to Englisch:]](/fileadmin/content/pig/press/photos/Schweinehaltung-Pig-production-MultiMax-1-Big-Dutchman.jpg "[Translate to Englisch:]")
![[Translate to Englisch:]](/fileadmin/content/pig/press/photos/Schweinehaltung-Pig-production-MultiMax-2-Big-Dutchman.jpg "[Translate to Englisch:]")
![[Translate to Englisch:]](/fileadmin/content/pig/press/photos/Schweinehaltung-Pig-production-MultiMax-3-Big-Dutchman.jpg "[Translate to Englisch:]")
DryWet feeder
for finishing and wean-to-finish
The DryWet feeder is available in two versions. It can be used from weaning (6 kg) to the final finishing stage, i.e. wean-to-finish, and as a feeder for finishing only. The pigs are always offered two options for feed intake: either dry or wet (with an integrated drinker line).
Main advantages
- height-adjustable feed table;
- 2 to 6 feeding places arranged on both sides (4 to 12 feeding places in total);
- every feeding place is equipped with a drinking nipple which can be accessed from both sides;
- an additional extension increases storage space for feed;
- entirely made of stainless steel;
- available as welded or screwed version;
- height: 780 mm; with extension: 930 mm.
