ReproMatic & FluxxBreeder
The feeding system developed specifically for broiler breeders

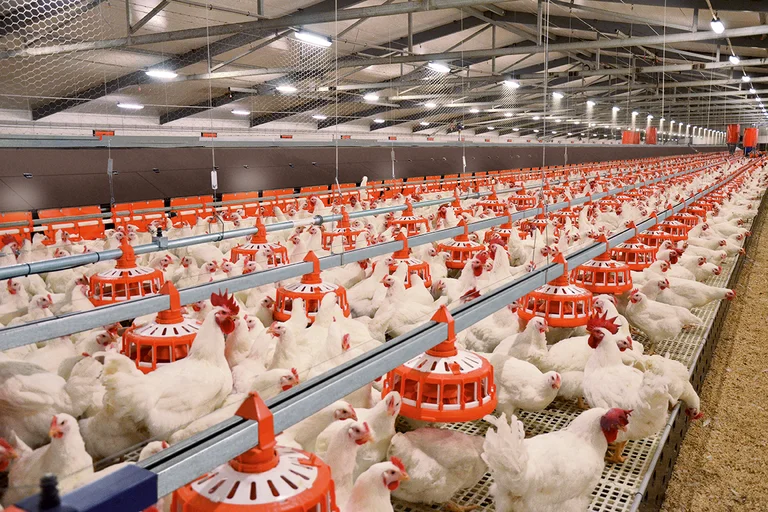

ReproMatic is a Big Dutchman feeding system which was developed exclusively for broiler breeders and combines chain and pan feeding systems. The birds‘ uniform physical and sexual development during rearing and a high, long-lasting reproductive capability during the production phase are essential for broiler breeder management.
This can only be achieved with restricted feeding of both males and females. Feed must therefore be available in each pan as soon as feeding starts. For this reason, a high-capacity conveying system consisting of an open feed channel with chain is the system of choice.

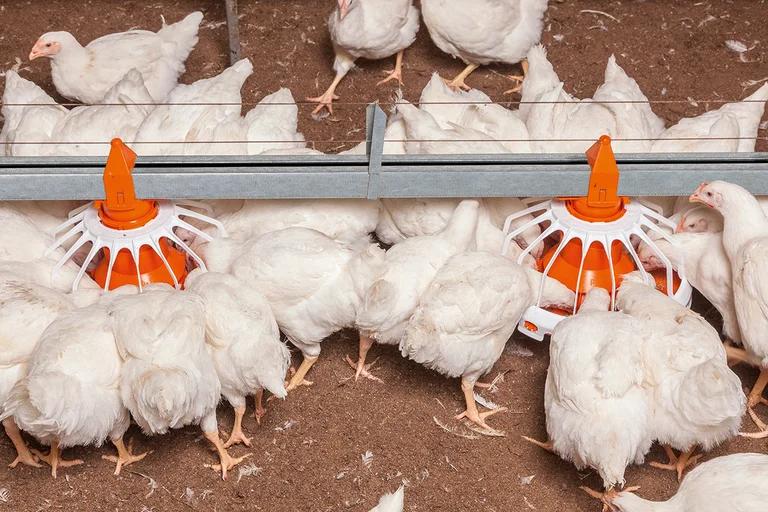

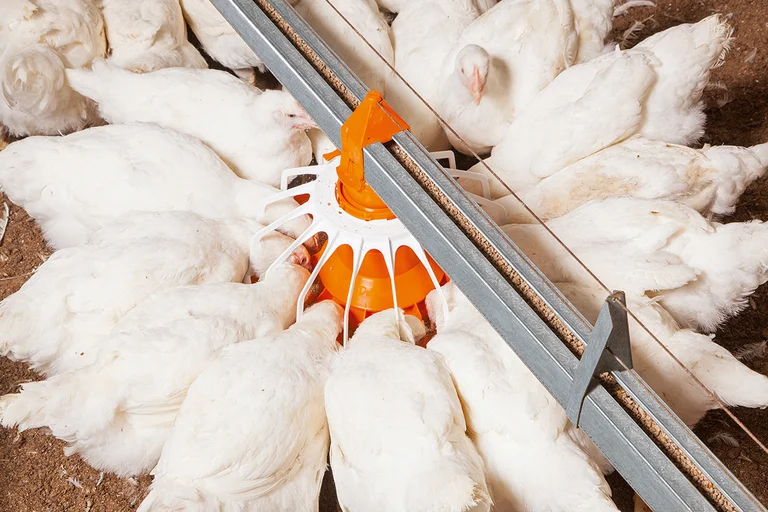

The birds are fed at the FluxxBreeder feed pan. This feed pan was developed specifically for broiler breeders and has 16 feeding windows, thus providing sufficient room for every bird during feed intake.
ReproMatic
The feeding system for broiler breeders
Avantaje principale
As the chain drive is always detached from the feed hopper, the feeding system can be easily adapted to any house situation.
- high chain speed of 36 m/min;
- motor output of 1.1/1.5 or 2.2 kW, depending on the chain length.
The CHALLENGER feed chain conveys large quantities of feed at a very high conveying speed.
- 2 t/h conveying capacity;
- high tensile strength;
- smooth chain operation within the channel;
- open system for easy maintenance.
Quality is a prerequisite for trouble-free operation. The specially-designed corner wheel is extremely reliable.
- fully hardened guide rail;
- lubrication-free bearing made of plastic for a long service life;
- wear-resistant bottom (Hardox 400).
FluxxBreeder
The feed pan for rearing and production in day-old-to-death or separate rearing and production systems
The main aim in rearing is for all hens of a flock to reach laying maturity at the same time. A uniform flock can only develop if all birds have a feeding space of sufficient width to feed simultaneously.
Moreover, pans must be filled immediately, at the same time and speed and to the same level. This is necessary so all birds of a flock receive the same amount of feed during restricted feeding.
Avantaje principale
Aufzucht
- 360° Flutmechanismus sorgt für hohen Futterfüllstand in der Schale durch Absenken des gesamten Umlaufs auf den Boden → ideal für Eintagsküken;
- einfaches und sicheres Einstellen des Futterniveaus in 11 Stufen über ein 3-gängiges Gewinde mit nur einer Hand, es ist kein unbeabsichtigtes Verstellen möglich;
- flacher Taschenteller → gute Futterverteilung in der Schale, reduziert Futterverluste;
- integrierter Volumenreduzierschacht ermöglicht kleine Futtermengen pro Schale → schnelle und gleichzeitige Befüllung aller Schalen eines Umlaufs.
Produktion

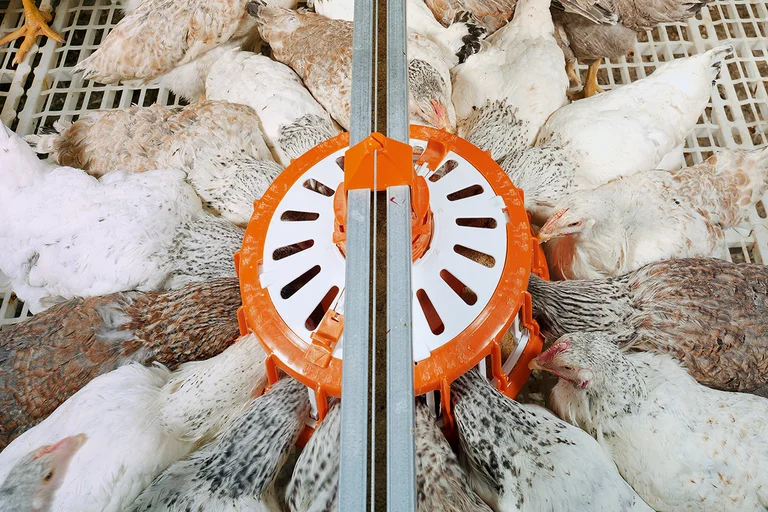

- 16 Fressfenster pro Schale -> hohe Besatzdichte
- kreisförmige Aufstellung der Hennen um die Schale -> bis zu 60 % mehr Tiere pro lfd. Meter Fütterungsanlage im Vergleich zum Trog
- spezieller FO-Grill (Female Only) zum Einstellen von 11 Fressfensterbreiten, zusätzlicher Niveauring für 4 Fressfensterhöhen
→ 44 Einstellmöglichkeiten
→ für alle Rassen geeignet
→ guter Zugang zum Futter für Eintagsküken im einphasigen Produktionsverfahren
→ kein Zugang zum Futter für die Hähne - gute Ausleuchtung der Schale durch Öffnungen im Schalendach → das Futter ist für die Hennen gut sichtbar
